產品名稱：RY8337 38V 3.3A 500KHz Synchronous Step-Down Regulator
型號： RY8337
產片介紹：General DescriptionThe RY8337 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs It offers a very compact
產片介紹：General DescriptionThe RY8337 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs It offers a very compact
┄┄┄詳細介紹┄┄┄
General Description
The RY8337 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power
MOSFETs. It offers a very compact solution to provide a 3.3A continuous current over a wide input supply range,
with excellent load and line regulation.
The RY8337 requires a minimal number of readily available, external components and is available in a space saving
ESOP8 package.
Features
• Wide 4.5V to 38V Operating Input Range • 130mΩ/100mΩ Low RDS(ON) Internal Power MOSFETs
• 3.3A Continuous Output Current • Output Adjustable from 0.923V
• 500KHz Switching Frequency • 97% Duty cycle max
• Output Voltage Range from 0.923V to 5V • No Schottky Diode Required
• Short Protection with Hiccup-Mode • Integrated internal compensation
• Built-in Over Current Limit • Thermal Shutdown
• Built-in Over Voltage Protection • Available in ESOP8 Package
• PFM Mode for High Efficiency in Light Load • -40°C to +85°C Temperature Range
• Internal Soft-Start
Applications
• Digital Set-top Box (STB) • Digital Video Recorder (DVR)
• Tablet Personal Computer (Pad) • Portable Media Player (PMP)
• Flat-Panel Television and Monitor • Cable Modem / XDSL
• Wi-Fi Router / AP • General Purposes

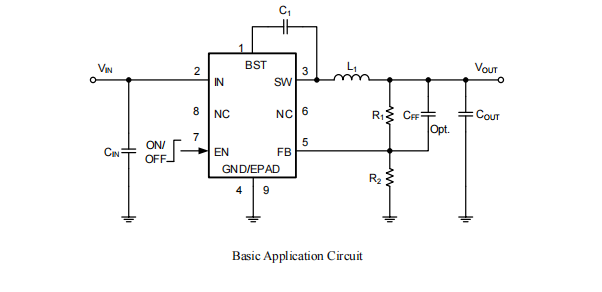

Typical Application Circuit
