產品名稱：ET7428 1Ω Dual SPDT Negative Signal Handing Analog Switch
型號： ET7428
產片介紹：General Description The ET7428 is an advanced CMOS analog switch fabricated in Sub−micron silicon gate CMOS technology Thepartalsofeaturesguarantee
產片介紹：General Description The ET7428 is an advanced CMOS analog switch fabricated in Sub−micron silicon gate CMOS technology Thepartalsofeaturesguarantee
┄┄┄詳細介紹┄┄┄
General Description
The ET7428 is an advanced CMOS analog switch fabricated in Sub−micron silicon gate CMOS technology.
The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. The switches can handle negative signal down to -3.6V. When the voltage of the COM terminal exceeds OVP threshold, the channels from the COM terminal to the NC and NO terminals will be turned off.
ET7428 is offered in a small QFN10L package, which is ideal for small form factor portable equipment.
Features
● Low RON is typical 1Ω @ VCC =3.3V
● Single supply operation from 2.7V to 5.5V
● Full -3.6V to 5.5V signal handling capability
● High off-channel isolation
● Low standby current
● Low distortion
● Break-Before-Make (BBM) switching
● High continuous current capability is ±300mA through each switch
● Part No. and Package Information
Application
● Smart Phones and Cellular Phones
● Cell Phone Audio Block/ Speaker
● Earphone Switching Ring-Tone Chip
● Amplifier Switching/Modems

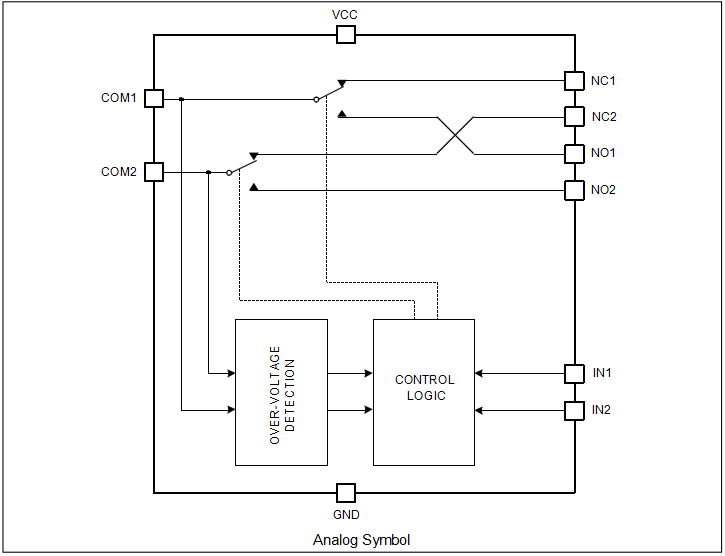

Analog Symbol

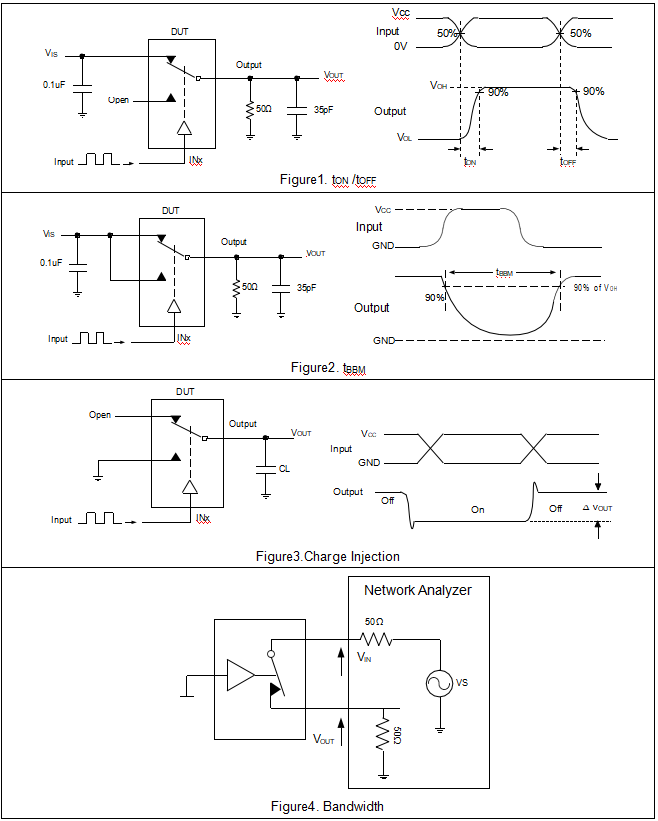

Test Circuit

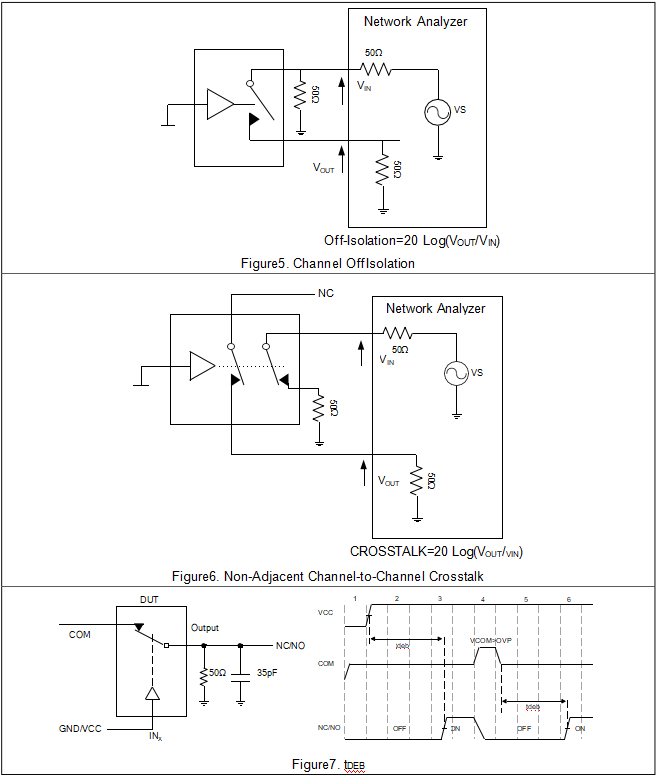

Test Circuit (Continued)
