DC-DC降壓
產品名稱：RY8001 5.5V 1A 1.5MHz 同步降壓穩壓器
型號： RY8001
產片介紹：The RY8001 is a high-efficiency monolithic synchronous buck regulator using a constant frequency
產片介紹：The RY8001 is a high-efficiency monolithic synchronous buck regulator using a constant frequency
┄┄┄詳細介紹┄┄┄
1.General Description
The RY8001 is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode
architecture. The device is available in fixed 1.25V output voltage. Supply current drops to 0.1uA in shutdown
mode. The 2.5V to 5.5V input voltage range makes the RY8001 ideally suited for single Li-Ion battery powered
applications. PWM/PFM mode operation provides very low output ripple voltage for noise sensitive applications.
Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors.
The RY8001 requires a minimal number of readily available, external components and is available in a space saving
SOT23-5 and SON763 package
2.Features
• 2.5V to 5.5V Input Voltage Range
• Fixed 1.25V Output Voltage
• 1A Continuous Output Current
• 1.5MHz Switching Frequency
• Built-in Short Protection
• Built-in Over Current Limit
• Built-in Over Voltage Protection
• PFM Mode for High Efficiency in Light Load
• High Efficiency: Up to 96%
• Internal Soft-Start
• No Schottky Diode Required
• No Resistor Divider Required
• Over Temperature Protected
• Low Shutdown Current: 0.1μA Typ.
• Available in SOT23-5/SON763 package
• -40°C to +85°C Temperature Range
3.Applications
• True Wireless Stereo
• Other Applications

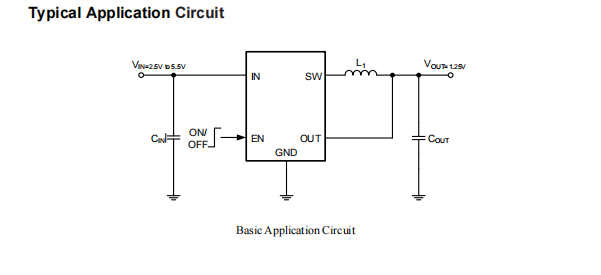

4.Typical Application Circuit

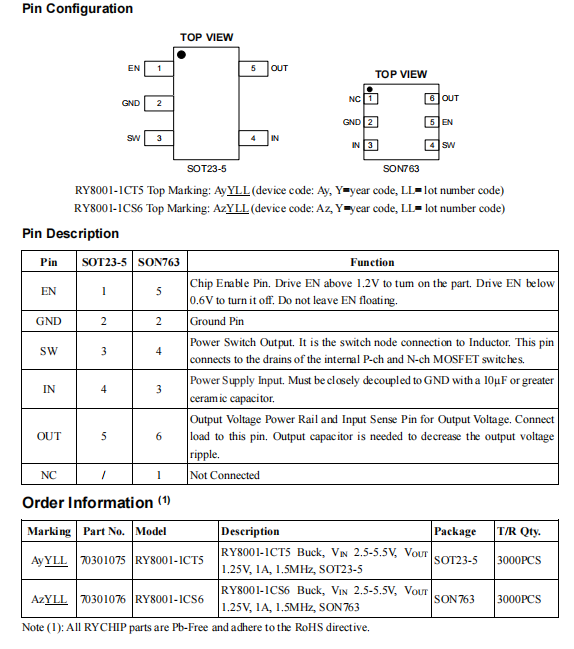

5.Pin Description
