LDO線性穩壓芯片
產品名稱：RY6050 Series 500mA High PSRR, Low Noise, Low Power LDO
型號： RY6050 Series
產片介紹：General Description The RY6050 series are highly accurate, low noise, CMOS LDO Voltage Regulators Offering low output noise, high ripple rejection ratio, low d
產片介紹：General Description The RY6050 series are highly accurate, low noise, CMOS LDO Voltage Regulators Offering low output noise, high ripple rejection ratio, low d
┄┄┄詳細介紹┄┄┄
General Description
The RY6050 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high
ripple rejection ratio, low dropout and very fast turn-on times. The RY6050’s current limiters' feedback circuit also
operates as a short protect for the output current limiter and the output pin. The output voltage is set by current
trimming. Voltages are selectable in 50mV steps within a range of 1.1V to 4.5V.
The RY6050 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output
stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent
transient response performance and high PSRR achieved across a broad range of frequencies. The EN function
allows the output of regulator to be turned off, resulting in greatly reduced power consumption. The RY6050 series
are available in SOT23-3, SOT23-5, DFN4-1×1 package.
Features
• Input Voltage Range: 2V to 5.5V • High PSRR: 70dB@1KHz (Typ.)
• Output Voltage Range: 1.1V to 4.5V • Over Current Protection
• Output Voltage Tolerance: ±2% • Short Circuit Protection
• Low Shutdown Current: 0.1μA (Typ.) • Thermal Shutdown Protection
• Low Power Consumption: 28μA (Typ.) • –40°C to 125°C Operating Junction Temperature
• Low Dropout: @100mA • SOT23-5/ SOT23-3/DFN4-1×1 Package
Applications
• Mobile Phones, Tablets • Digital Cameras and Audio Devices
• Portable Medical Equipment • Portable and Battery-Powered Equipment
• IP Cameras • Drones

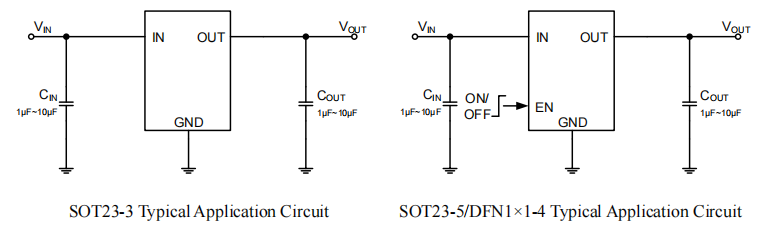

Typical Application Circuit
